I learned this the hard way—well, not me personally, but a fabricator friend of mine who thought he could “eyeball” a torispherical head to save a few bucks on plate material. Spoiler alert: his third-party inspector rejected the whole batch. Cost him two weeks and a client.
So, what makes a torispherical head actually meet ASME Code? It’s not magic, that’s for sure. It’s a mix of math, geometry, and decades of engineering wisdom packed into ASME Section VIII, Division 1—the go-to guide for pressure vessel design in North America and many other parts of the world. The secret? It’s all about the curves.

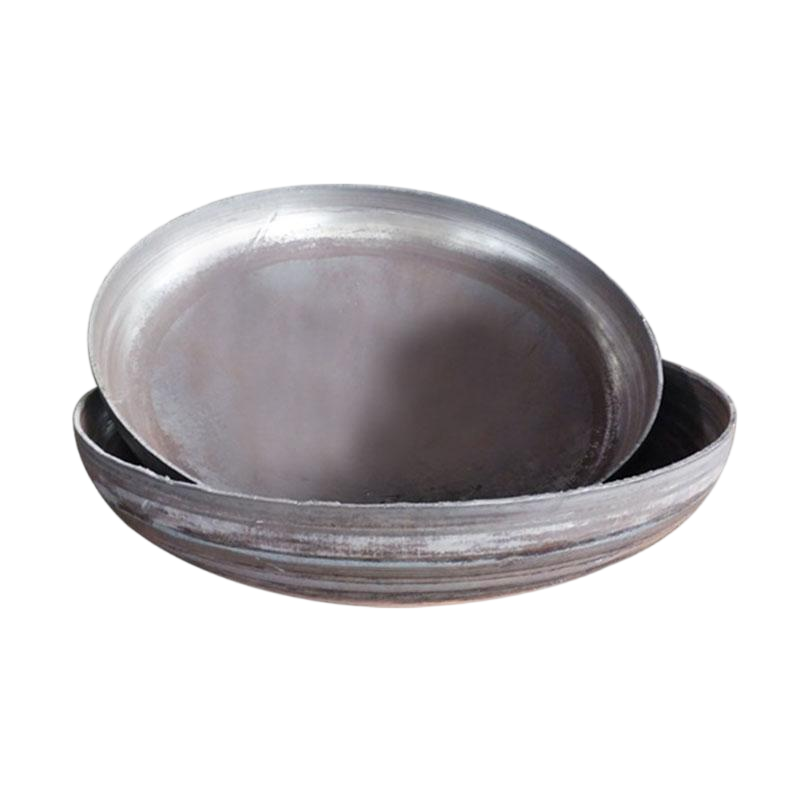

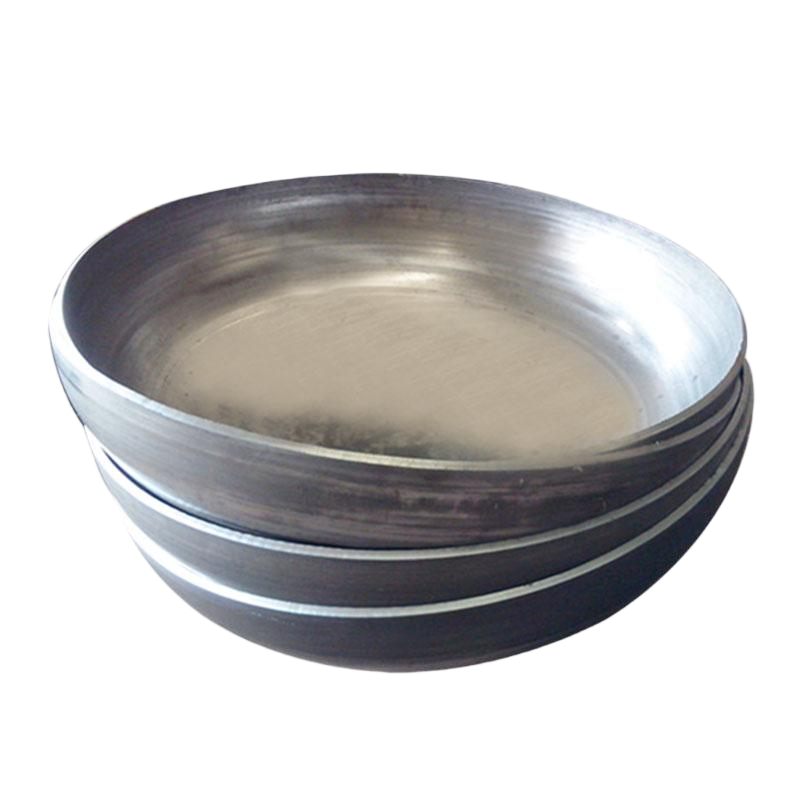

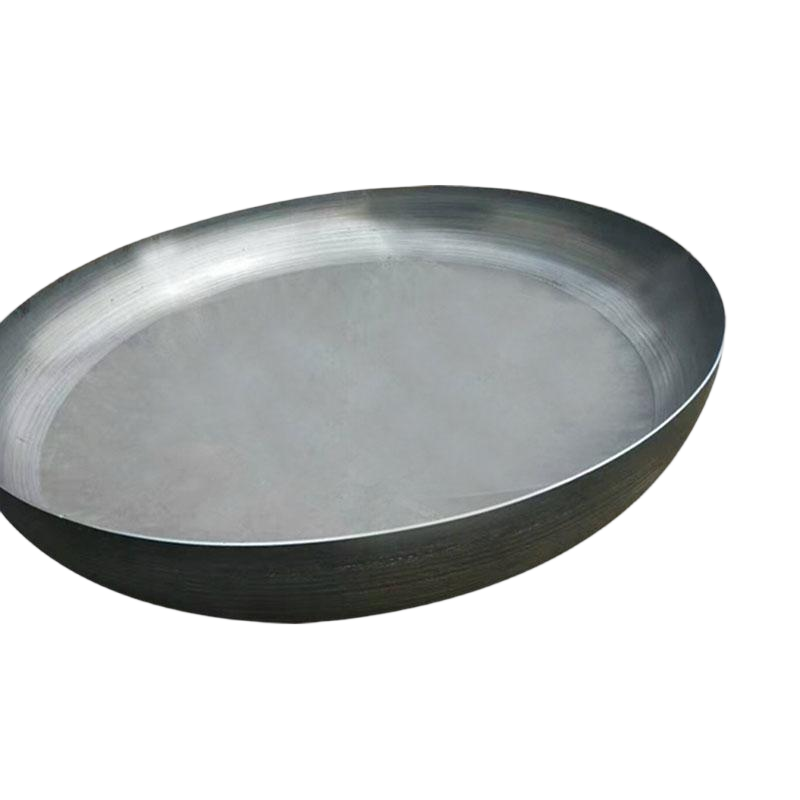

A torispherical head isn’t just some dome with a bend. It has to adhere to two very specific radii to qualify as an ASME flanged and dished (F&D) head. First, the crown radius—the large, shallow dish in the middle—must equal the outside diameter (OD) of the vessel. Second, the knuckle radius (the tight curve where the head meets the cylinder) must be at least 6% of the OD. And importantly, it should never be less than three times the thickness of the head.
Why does that 6% matter so much? Because anything less can cause stress to spike like crazy in the knuckle under pressure. Think about it this way: imagine bending a paperclip. If the bend is gentle, it can handle the force just fine. But if the bend is sharp, the paperclip cracks quickly. The same principle applies to the knuckle on a torispherical head.
These guidelines aren’t just recommendations—they are mandatory requirements. They exist because real pressure vessels have exploded when designers ignored them. There’s no room for guesswork when it comes to these components.
Once you’ve nailed the correct shape, ASME provides a formula in UG-32(f) to calculate the minimum required thickness based on internal pressure, material stress limits, the vessel diameter, and those specific radii we just discussed. But here’s the kicker: if your head doesn’t match the prescribed geometry, that formula no longer applies. Instead, you’re looking at finite element analysis (FEA), which means expensive software, certified analysts, and weeks of validation—definitely not ideal for a small shop making a steam receiver for a coffee roaster.
When you see the label “Torispherical per ASME UG-32(f)” or “ASME F&D head” on a drawing, it’s not just a marketing tactic. It means the geometry has been crafted to match code-prescribed ratios, the thickness has been calculated using the approved method, and, if the entire vessel qualifies, it can even be stamped with the ASME “U” symbol. That stamp is your insurance policy—literally. Without it, insurance companies and regulators won’t touch the vessel.
At the end of the day, torispherical heads are popular not because they’re the strongest (that title belongs to hemispherical heads), but because they offer a smart balance of safety, cost, and code compliance for a wide range of industrial applications—everything from food processing tanks to chemical reactors.
But—and this is crucial—they only deliver that balance when they’re built to spec. “Close enough” just doesn’t cut it in pressure vessels. When something’s off, people can get hurt.
So, next time you’re reviewing a quote or drawing for a torispherical head, don’t just nod along with the term “torispherical.” Ask yourself: Is it ASME F&D? Does it meet UG-32(f)?
